Dark Mode

The gospace Floorplan SDK (@gospace-ai/floorplan) supports a Dark Mode feature, allowing developers to enable a dark-themed user interface for the embedded floorplan. This enhances accessibility, improves visibility in low-light environments, and aligns with modern design preferences.

Key Features

• Optional Dark Mode: Toggle a dark-themed UI for the floorplan to match your application’s aesthetic or user preferences.

• Seamless Integration: Applied via a single configuration parameter, with no additional setup required.

• Consistent Experience: Works in both 2D Mode and 3D Mode, ensuring a cohesive look across rendering modes.

• User-Friendly: Enhances readability and reduces eye strain for users in dark environments.

Configuration

To enable Dark Mode, set the dark_mode parameter to true when initialising the SDK:

Example

const sdk = new gospaceFloorplan.FloorplanSDK({
  key: 'floorplan-container',
  access_token: 'client-specific-access-token',
  location_id: '12345',
  layer_id: 'abc123', // Optional: Triggers 2D Mode
  dark_mode: true // Enables Dark Mode
});
sdk.init();

Parameter Details

Parameter	Type	Description	Required	Default
dark_mode	boolean	Enables dark-themed UI for the floorplan	No	false

Behavior

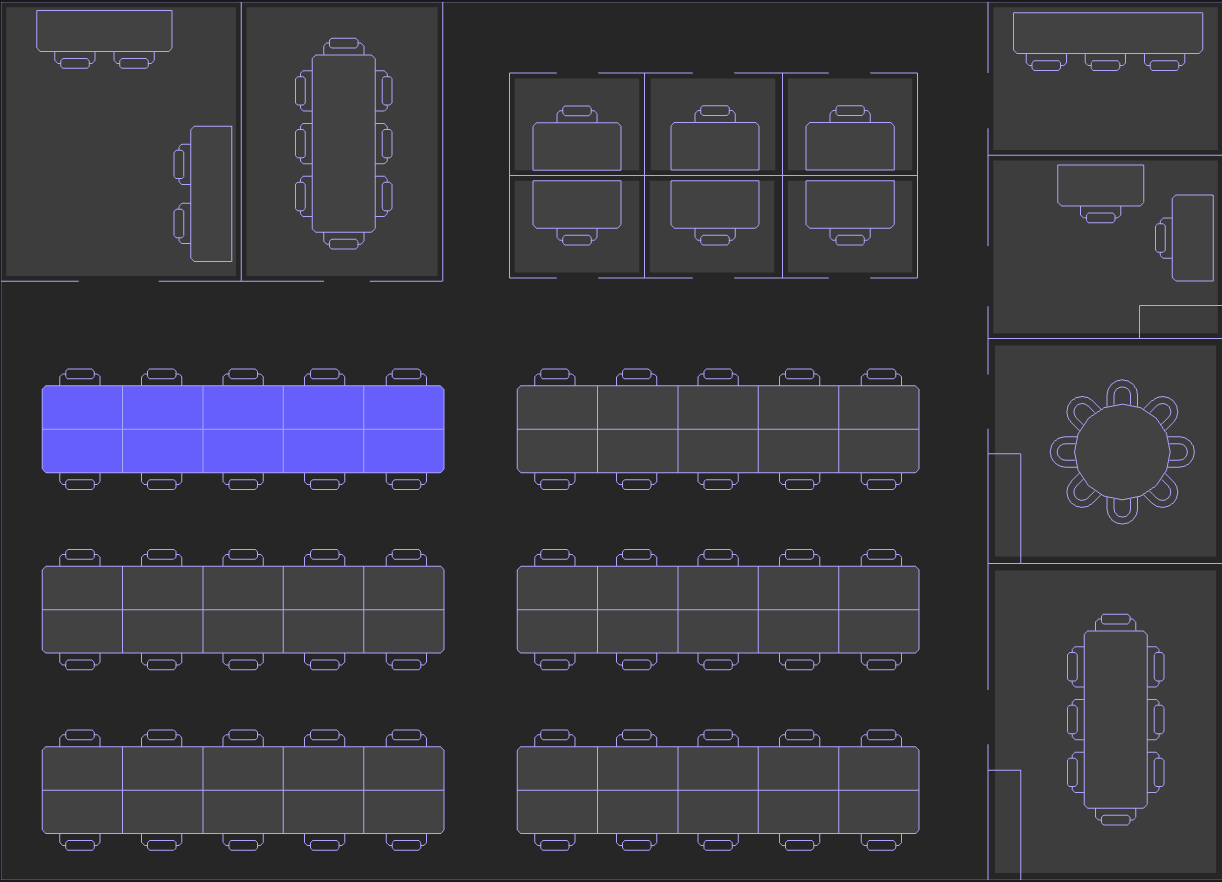

• When dark_mode: true, the floorplan iframe (hosted at https://floorplan.gospace.app) renders with a dark color scheme, including darker backgrounds and adjusted text/icon colors.

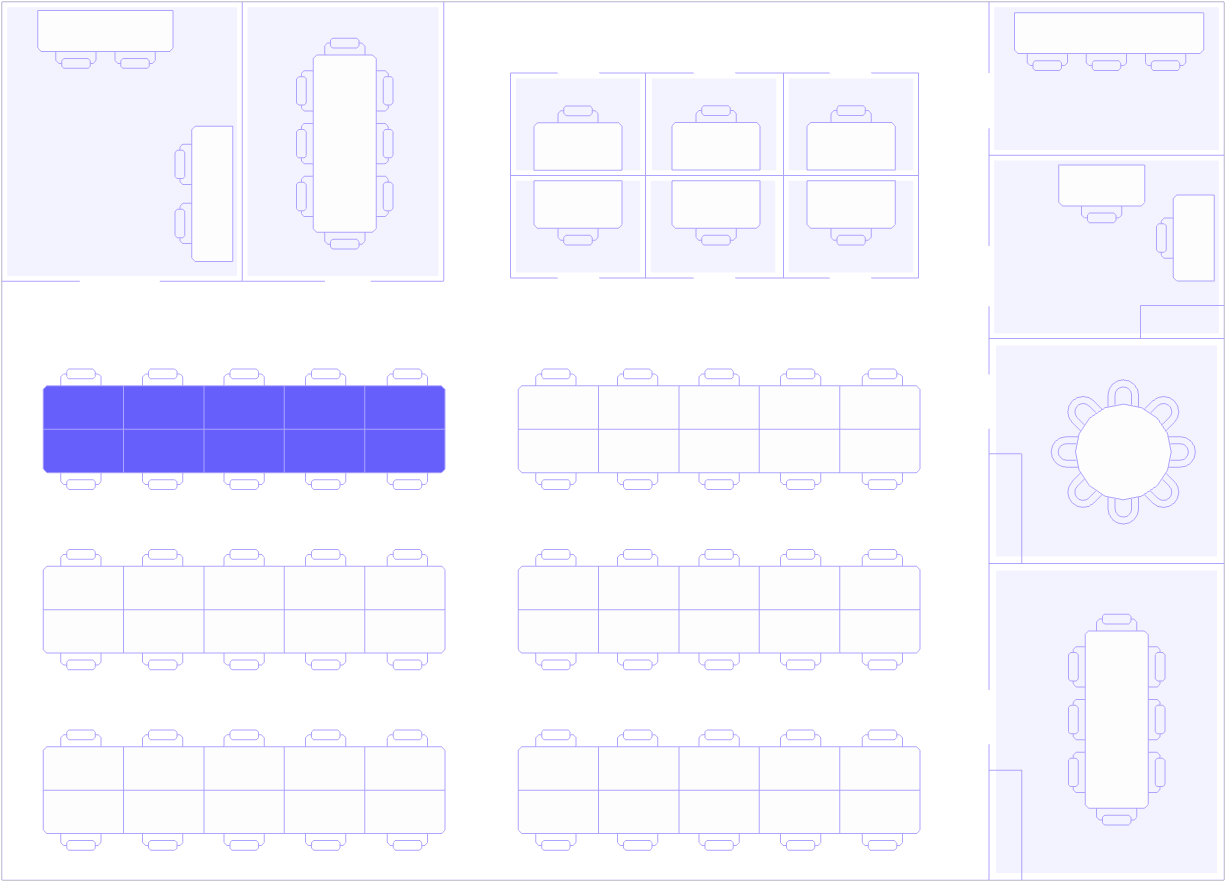

• When dark_mode: false (or omitted), the default light-themed UI is used.

• Dark Mode applies consistently in both 2D Mode (with layer_id) and 3D Mode (without layer_id).

Use Case

• Aesthetic Alignment: Match the floorplan’s appearance to a dark-themed application.

• Accessibility: Improve usability for users in low-light settings or with visual preferences for darker interfaces.

• Branding: Create a cohesive look for applications targeting modern, dark-mode-friendly designs.

Best Practices

• Dynamic Toggling: Allow users to toggle Dark Mode by reinitialising the SDK with updated dark_mode values based on user preferences.

• Testing: Preview the floorplan in both light and dark modes to ensure visual clarity for all space allocations (e.g., desks, offices, meeting rooms).

• CSS Integration: Use the class_name parameter to apply custom styles that complement Dark Mode.
